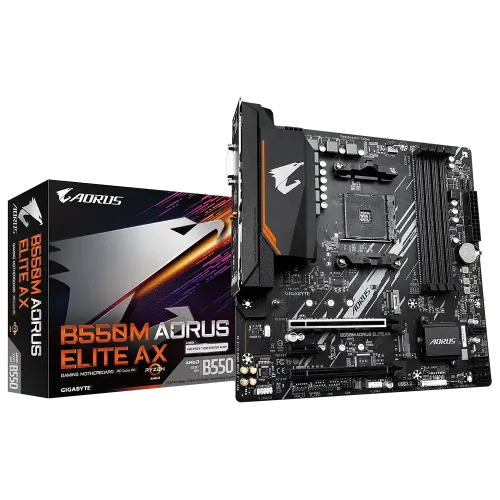

GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
Share: Facebook chat WhatsApp
Gigabyte check_circle In Stock Model: B550M AORUS ELITE AX

GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • CPU: Socket AM4 supports Ryzen 5000 / 5000 G-Series/ 4000 G-Series and 3000
  • Supported RAM: 4 x DIMM, DDR4 4733(OC) MHz
  • Graphics Output: 1 x HDMI, 1 x DVI-D
  • Features: 1 x M.2 Slot, Realtek GbE LAN chip
17,000৳
EMI starts at 557৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart Gigabyte Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
ChipsetAMD B550
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Basic Information
Graphics Integrated in the AMD Ryzen 5000 G-Series/4000 G-Series Processors:
Expansion Slots
PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
M.2 Socket1 x M.2
Memory
Type (Memory)Dual-Channel Architecture
Memory
Slots4 x DDR4 memory slots
Supported MemorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memorysupport up to 128GB
Warranty Information
Manufacturing Warranty03 years warranty
Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset:
RAIDSupport for RAID 0, RAID 1, and RAID 10
AudioRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Graphics
Max Shared Memory16 GB
Others
Bundled SoftwareSupport for Windows 11 64-bit Support for Windows 10 64-bit
Others
Special FeaturesSupport for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Description

GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard

Build a powerful AMD desktop with the GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard. Featuring the AMD B550 chipset, four DDR4 memory slots, built-in Wi-Fi 6E and dual M.2 storage connectors, this motherboard is designed for compatible AMD Ryzen processors. Its compact Micro-ATX form factor makes it suitable for gaming, productivity and everyday computing builds.

Key Features of the GIGABYTE B550M AORUS ELITE AX DDR4 Motherboard

AMD B550 Chipset and AM4 Processor Support

The AMD B550 chipset supports a range of compatible Ryzen desktop processors. The board is suitable for users planning an AM4-based gaming or productivity PC. Check GIGABYTE's CPU support list and the motherboard's BIOS version before selecting your processor.

Four DDR4 Memory Slots

With four DIMM slots and support for up to 128GB of DDR4 memory, this motherboard offers flexibility for multitasking, gaming and demanding applications. Dual-channel memory architecture and compatible XMP profiles help users configure supported memory kits.

Wi-Fi 6E and Bluetooth Connectivity

The built-in Wi-Fi 6E wireless module supports compatible 2.4GHz, 5GHz and 6GHz networks, while Bluetooth provides wireless connectivity for supported peripherals. Access to the 6GHz band depends on local regulations, router compatibility and network configuration.

Dual M.2 SSD Support

The GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard includes two M.2 connectors for compatible SSDs. The primary connector's maximum speed depends on the installed processor, while the secondary connector supports PCIe 3.0 x2 and SATA M.2 drives. Four SATA 6Gb/s ports provide additional storage options.

PCIe Expansion and Graphics Support

The main PCIe x16 slot supports compatible graphics cards, with PCIe 4.0 operation available on supported Ryzen 3000 and 5000 series processors. Certain G-Series processors operate the slot at PCIe 3.0. Additional expansion slots support compatible add-in cards.

Smart Fan 6 and RGB Lighting

Smart Fan 6 offers fan-control and temperature-monitoring features to help manage system cooling. RGB Fusion 2.0 supports compatible RGB and addressable LED lighting, allowing you to personalize your PC build.

Who Should Buy This Motherboard?

The GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard is a suitable option for users who want to:

  • Build a gaming PC with a compatible AMD Ryzen processor.

  • Use DDR4 memory with room for future capacity upgrades.

  • Connect to wireless networks without a separate Wi-Fi adapter.

  • Install two compatible M.2 SSDs and additional SATA storage.

  • Build a compact Micro-ATX desktop for gaming or productivity.

Compatibility Notes

This motherboard uses the AM4 socket and DDR4 memory; it does not support AM5 processors or DDR5 RAM. Processor compatibility depends on the exact CPU model, motherboard revision and BIOS. HDMI and DVI-D display outputs require a compatible processor with integrated graphics. Confirm the exact revision before relying on revision-specific wireless and Bluetooth specifications.

Buy GIGABYTE B550M AORUS ELITE AX from UCP

Looking for the GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard in Bangladesh? Contact United Computer Palace (UCP) to confirm the latest price, stock availability, warranty and compatibility before ordering. UCP can help you choose compatible components for your next AMD desktop PC build.
