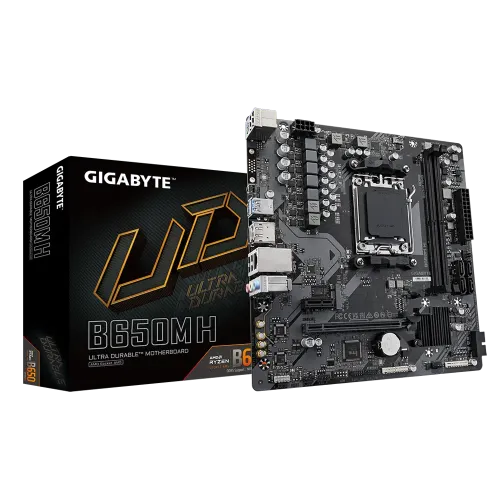

GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
Share: Facebook chat WhatsApp
Gigabyte check_circle In Stock Model: B650M H

GIGABYTE B650M H AM5 Micro-ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x DisplayPort, 1 x HDMI
13,900৳
EMI starts at 456৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart Gigabyte Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUAMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
ChipsetAMD B650
Form FactorMicro ATX Form Factor; 23.0cm x 22.5cm
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Basic Information
Graphics supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots
PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Memory
Slots2 x DIMM
Maximum Memorysupporting up to 96 GB (48 GB single DIMM capacity) of system memory
Memory
Type (Memory)DDR5
Warranty Information
Manufacturing Warranty3 Years
Connector & Ports
HDMI1 x HDMI
USB (s)CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Ports & Slots
Display port1 x DisplayPort
Others
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Description

GIGABYTE B650M H AM5 Micro-ATX Motherboard

Build a modern AMD desktop with the GIGABYTE B650M H AM5 Micro-ATX Motherboard. Featuring the AMD B650 chipset, DDR5 memory support and PCIe 4.0 connectivity, this motherboard is designed for compatible AMD Ryzen processors. Its compact Micro-ATX form factor makes it suitable for home, office, gaming and productivity PC builds.

Key Features of the GIGABYTE B650M H AM5 Motherboard

AMD B650 Chipset and AM5 Processor Support

The AMD B650 chipset provides a platform for compatible Ryzen 7000, 8000 and 9000 Series desktop processors. The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a practical option for users building a modern AMD system for gaming, work or everyday computing. Check the CPU support list and BIOS compatibility before installation.

DDR5 Memory for Modern PC Builds

With two DDR5 DIMM slots and dual-channel memory support, this motherboard provides a foundation for responsive multitasking and demanding applications. Supported memory speeds and maximum capacity vary by revision, processor and memory configuration. Compatible AMD EXPO and Intel XMP memory profiles are supported.

PCIe 4.0 Graphics Expansion

The PCIe 4.0 x16 slot supports compatible dedicated graphics cards, making the board suitable for gaming and graphics-focused PC configurations. Check the graphics card's power requirements, physical dimensions and case clearance when planning your build.

PCIe 4.0 M.2 SSD Storage

The onboard PCIe 4.0 x4 M.2 connector supports compatible NVMe SSDs for fast storage and responsive application loading. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA SSDs and hard drives.

HDMI and DisplayPort Connectivity

The HDMI and DisplayPort outputs allow connection to compatible displays when the installed processor includes integrated graphics. These outputs do not provide display functionality with processors that lack an integrated GPU.

Smart Fan 6 Cooling Management

Smart Fan 6 provides supported fan-control options and temperature monitoring to help manage system cooling. This is useful when configuring airflow for a compact Micro-ATX desktop.

Who Should Buy the GIGABYTE B650M H AM5 Micro-ATX Motherboard?

This motherboard is worth considering for users who want to:

  • Build a desktop PC using a compatible AMD Ryzen 7000, 8000 or 9000 Series processor.

  • Upgrade to DDR5 memory and the AM5 platform.

  • Install a dedicated graphics card for gaming or creative workloads.

  • Use an M.2 NVMe SSD alongside additional SATA storage.

  • Build a compact Micro-ATX desktop for home, office or study.

Compatibility Notes

The GIGABYTE B650M H uses the AM5 socket and DDR5 memory. It is not compatible with AM4 processors or DDR4 RAM. Supported CPUs, maximum memory capacity and memory speeds can vary by motherboard revision and BIOS version. Confirm the exact revision and processor compatibility before purchasing.

Buy GIGABYTE B650M H AM5 Micro-ATX Motherboard from UCP

Looking for the GIGABYTE B650M H AM5 Micro-ATX Motherboard in Bangladesh? Contact United Computer Palace (UCP) to confirm the latest price, stock availability, warranty details and compatibility before ordering. Choose suitable components for your next AMD PC build with UCP.

Reviews (0)
0
☆☆☆☆☆ No reviews yet
Q&A (0)

What is the price of GIGABYTE B650M H AM5 Micro-ATX Motherboard?

The latest price of GIGABYTE B650M H AM5 Micro-ATX Motherboard in Bangladesh is 13,900৳ You can buy the GIGABYTE B650M H AM5 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
