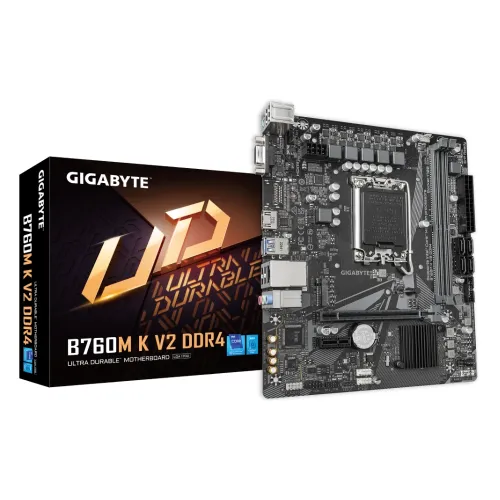

GIGABYTE B760M K V2 DDR4 mATX Motherboard
GIGABYTE B760M K V2 DDR4 mATX Motherboard
GIGABYTE B760M K V2 DDR4 mATX Motherboard
GIGABYTE B760M K V2 DDR4 mATX Motherboard
GIGABYTE B760M K V2 DDR4 mATX Motherboard
Share: Facebook chat WhatsApp
Gigabyte check_circle In Stock Model: B760M K V2 DDR4

GIGABYTE B760M K V2 DDR4 mATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
  • Graphics Output: 1x HDMI, 1 x D-Sub
  • Features: Realtek GbE LAN chip
13,900৳
EMI starts at 456৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart Gigabyte Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
AudioRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Basic Information
Supported CPULGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
ChipsetIntel B760 Express Chipset
Form FactorMicro ATX Form Factor; 22.3cm x 19.3cm
BIOS1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Basic Information
Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots
PCICPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket1 x M.2 connector
Memory
Slots2
Supported MemorySupport for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memoryup to 64GB (32 GB single DIMM capacity) of system memory
Memory
Type (Memory)DDR4
Warranty Information
Manufacturing Warranty3 years
Connector & Ports
D-Sub (s)1x D-Sub
HDMI1x HDMI
USB (s)Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported StorageChipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Bundled SoftwareNorton Internet Security (OEM version) LAN bandwidth management software
Others
Special FeaturesSupport for GIGABYTE Control Center (GCC) Support for Q-Flash
Description

GIGABYTE B760M K V2 DDR4 mATX Motherboard

The GIGABYTE B760M K V2 DDR4 mATX Motherboard is designed for desktop PC builds using compatible Intel processors. Powered by the Intel B760 chipset, it supports 12th, 13th and 14th Gen Intel Core processors, dual-channel DDR4 memory and modern storage and graphics connectivity. Its compact Micro-ATX design makes it suitable for home, office and gaming PC configurations.

Key Features of the GIGABYTE B760M K V2 DDR4 mATX Motherboard

Intel B760 Chipset and LGA1700 Socket

The Intel B760 chipset provides a platform for compatible 12th, 13th and 14th Gen Intel processors. This motherboard is suitable for building a desktop PC for gaming, productivity, study and everyday computing. Check the processor support list and BIOS compatibility before installation.

Dual-Channel DDR4 Memory Support

With two DDR4 memory slots and support for up to 64GB of RAM, the board offers a practical memory configuration for multitasking and demanding desktop applications. It supports dual-channel memory and compatible XMP memory profiles.

PCIe 4.0 Graphics Expansion

The primary PCIe 4.0 x16 slot supports compatible dedicated graphics cards. This gives users flexibility when assembling a gaming or performance-focused PC. Actual graphics-card compatibility also depends on the card's dimensions, power requirements and case clearance.

M.2 SSD and SATA Storage

The board includes one M.2 connector supporting compatible PCIe 3.0 x4/x2 SSDs, along with four SATA 6Gb/s connectors for additional storage. An SSD can help improve system responsiveness and application loading times.

HDMI, VGA and Gigabit LAN

HDMI and D-Sub display outputs support compatible displays when the installed processor provides integrated graphics. Realtek Gigabit LAN delivers wired network connectivity, while the onboard HD audio supports everyday listening and communication.

Smart Fan 6 and Practical Cooling Controls

Smart Fan 6 provides temperature monitoring and fan-control features with compatible fans and supported configurations, helping users manage cooling for their PC build.

Who Should Buy This Motherboard?

The GIGABYTE B760M K V2 DDR4 mATX Motherboard is worth considering for users who want to:

  • Build a PC with a compatible Intel 12th, 13th or 14th Gen processor.

  • Reuse compatible DDR4 memory instead of switching to DDR5.

  • Assemble a compact Micro-ATX gaming or productivity desktop.

  • Install a dedicated graphics card and an M.2 SSD.

  • Connect additional SATA SSDs or hard drives.

Compatibility Notes

Before purchasing, verify your exact CPU model, RAM type and case dimensions. This motherboard supports DDR4 memory only, not DDR5. The HDMI and VGA outputs require a compatible processor with integrated graphics; CPUs without integrated graphics need a dedicated graphics card for display output. The M.2 slot supports PCIe 3.0 SSDs, so do not assume it provides PCIe 4.0 M.2 speeds.

Buy GIGABYTE B760M K V2 DDR4 mATX Motherboard from UCP

Looking for the GIGABYTE B760M K V2 DDR4 mATX Motherboard in Bangladesh? Contact United Computer Palace (UCP) to confirm the latest price, stock availability, warranty details and component compatibility before ordering. Choose the right motherboard for your next PC build with UCP.
