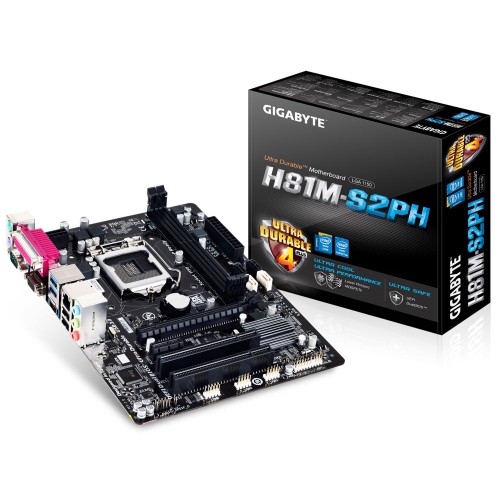

Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Share: Facebook chat WhatsApp
Gigabyte check_circle In Stock Model: GA-H81M-S2PH

Gigabyte GA-H81M-S2PH Micro ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 1 views
  • Supports 4th Generation Intel Core processors
  • GIGABYTE UEFI DualBIOS
  • All solid capacitors design
  • LAN with high ESD Protection
8,800৳
EMI starts at 288৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart Gigabyte Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupport for Intel Core i7 processors/Intel Core i5 processors/Intel® Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
ChipsetIntel H81 Express
Form FactorMicro ATX Form Factor; 24.4cm x 18.0cm
BIOS2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Basic Information
Graphics Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot 2 x PCI slots
Memory
Slots2 x 1.5V DDR3
Supported MemorySupport for DDR3 1600/1333 MHz memory modules
Memory
Type (Memory)Dual channel memory architecture
Warranty Information
Manufacturing Warranty03 Years
Connector & Ports
D-Sub (s)1 x D-Sub port maximum resolution of 1920x1200
HDMI1 x HDMI port maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
USB (s)Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
AudioRealtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )N/A
Others
Special FeaturesSupport for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Description

Gigabyte GA-H81M-S2PH Micro ATX Motherboard

The Gigabyte GA-H81M-S2PH Micro ATX Motherboard is designed for desktop PCs using compatible 4th Generation Intel Core processors. Built on the Intel H81 chipset, it supports DDR3 memory, SATA storage, HDMI and VGA display connections, and Gigabit Ethernet. It is suitable for basic home computing, office applications, and upgrading compatible older desktop systems.

Key Features of the Gigabyte GA-H81M-S2PH Micro ATX Motherboard

  • 4th Gen Intel Processor Support: The LGA1150 socket supports compatible Intel Core i7, i5, i3, Pentium, and Celeron processors.

  • DDR3 Dual-Channel Memory: Two memory slots support up to 16GB of DDR3 1333/1600MHz RAM for everyday desktop tasks.

  • Flexible SATA Storage: Connect compatible SATA SSDs and hard drives using two SATA 6Gb/s and two SATA 3Gb/s ports.

  • HDMI and VGA Outputs: Connect compatible displays using HDMI or traditional VGA. Display output requires a processor with integrated graphics.

  • Gigabit Ethernet: The onboard LAN provides wired network connectivity for internet access, office work, and file transfers.

  • GIGABYTE DualBIOS: The dual-BIOS design provides a backup BIOS to help protect against certain BIOS failures.

  • Compact Micro-ATX Design: Its smaller form factor fits compatible Micro-ATX and larger PC cases.

Who Should Buy This Motherboard?

The Gigabyte GA-H81M-S2PH Micro ATX Motherboard is suitable for users maintaining or rebuilding older desktop PCs for office work, study, browsing, and basic home computing. It can also serve as a replacement board for a compatible LGA1150 system.

Compatibility Notes

  • This motherboard uses the LGA1150 socket and supports compatible 4th Gen Intel processors. It is not compatible with newer LGA1200, LGA1700, or AMD AM4/AM5 processors.

  • It supports DDR3 memory only, up to 16GB across two slots. DDR4 and DDR5 RAM are not compatible.

  • It does not provide a modern NVMe M.2 slot; storage connections are SATA-based.

  • HDMI and VGA display outputs require a compatible processor with integrated graphics.

  • Confirm the exact motherboard revision and processor support list before purchase.

Buy Gigabyte GA-H81M-S2PH Micro ATX Motherboard from UCP

Looking for the Gigabyte GA-H81M-S2PH Micro ATX Motherboard in Bangladesh? Contact UCP (United Computer Palace) to confirm the current price, stock availability, and warranty details before ordering.
