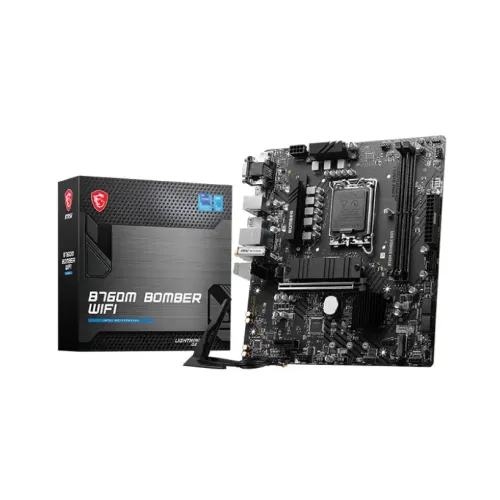

MSI B760M BOMBER WIFI mATX Motherboard

MSI B760M BOMBER WIFI mATX Motherboard

Build a reliable Intel gaming or productivity PC with the MSI B760M BOMBER WIFI mATX Motherboard. Built on the Intel B760 chipset with an LGA 1700 socket, it supports Intel Core 14th, 13th, and 12th Gen desktop processors, along with Intel Pentium Gold and Celeron processors.

The motherboard includes two DDR5 DIMM slots with dual-channel support, up to 192GB memory capacity, and DDR5 speeds of 6400+ MT/s through overclocking. It also offers PCIe 4.0 expansion, dual M.2 slots, Wi-Fi 6E, Bluetooth, and Realtek 2.5G LAN for a modern, connected PC build.

Key Features

• Intel LGA 1700 platform: Supports Intel Core 14th, 13th, and 12th Gen processors, plus Pentium Gold and Celeron CPUs.

• DDR5 memory performance: Two DDR5 slots support dual-channel memory up to 192GB and 6400+ MT/s overclocked speeds.

• PCIe 4.0 graphics support: The PCIe 4.0 x16 slot provides a high-bandwidth connection for modern graphics cards.

• Dual M.2 storage: Includes two M.2 slots, with the primary Lightning Gen4 x4 M.2 slot protected by an M.2 Shield Frozr heatsink.

• Wi-Fi 6E and 2.5G LAN: Combines modern wireless connectivity with Realtek 2.5Gbps wired Ethernet for gaming, streaming, and large file transfers.

• Flexible display outputs: HDMI, DisplayPort, and D-Sub outputs support compatible monitors and multi-display setups when using a CPU with integrated graphics.

• Compact mATX design: Fits Micro-ATX and most standard ATX cases, making it suitable for compact and mainstream PC builds.

Storage and Expansion

The MSI B760M BOMBER WIFI includes two M.2 slots supporting 2280, 2260, and 2242 SSDs. The first M.2 slot connects through the CPU and supports PCIe 4.0 x4, while the second slot connects through the chipset and supports PCIe 4.0 x4 or SATA mode.

It also provides four SATA 6Gb/s ports for additional SSDs or hard drives. Before installing an M.2 SATA SSD in the second M.2 slot, note that the SATA7 port will be disabled.

Who Should Buy This Motherboard?

The MSI B760M BOMBER WIFI is a practical choice for:

• Gamers building an Intel 14th, 13th, or 12th Gen gaming PC

• Users who want DDR5 memory and PCIe 4.0 NVMe SSD support

• Content creators who need dual M.2 storage and up to 192GB DDR5 memory

• Office and study users seeking Wi-Fi 6E and fast 2.5G wired networking

• PC builders who prefer a compact Micro-ATX motherboard with modern connectivity

Build and Compatibility Notes

Before purchasing, confirm that your Intel processor uses the LGA 1700 socket and is compatible with the B760 chipset. Integrated graphics output through HDMI, DisplayPort, or D-Sub requires a compatible Intel CPU with integrated graphics.

Also ensure your PC case supports a Micro-ATX motherboard, your power supply includes the required 24-pin ATX and 8-pin CPU power connectors, and your DDR5 memory meets the motherboard’s supported speed and capacity requirements.

Buy MSI B760M BOMBER WIFI from UCP

Looking for the MSI B760M BOMBER WIFI mATX Motherboard price in Bangladesh? Explore UCP for a modern Intel B760 motherboard for gaming, study, office, and content-creation builds. Check the current price, stock availability, included accessories, and applicable warranty details before placing your order.

Choose the MSI B760M BOMBER WIFI for Intel LGA 1700 support, DDR5 performance, PCIe 4.0 storage, Wi-Fi 6E, and 2.5G LAN in a compact Micro-ATX motherboard.
