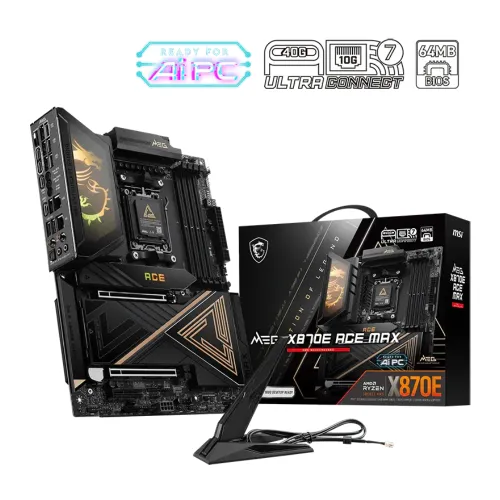

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
Share: Facebook chat WhatsApp
MSI check_circle In Stock Model: MEG X870E ACE MAX

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
  • Supported RAM: 4x DDR5 UDIMM, 8400+MT/s (OC), Max 256GB
  • Graphics Output: 2x Type-C, 1 x HDMI
  • Features: 5 x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
95,000৳
EMI starts at 3,114৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart MSI Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
ChipsetAMD X870E
Form FactorATX 243.84mmx304.8mm
Basic Information
AudioRealtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Basic Information
Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*
Expansion Slots
PCI2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
Memory
Slots4x UDIMM
Supported MemoryMaximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory256GB
Memory
Type (Memory)DDR5
Connector & Ports
HDMI 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
USB (s)4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)1x Marvell AQC113CS 10Gbps LAN 1x Realtek 8126 5Gbps LAN
Wireless Communication moduleWi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Internal I/O Ports Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Ports & Slots
Display port2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*
Others
Special Features1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switch
Description

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard

The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is a premium platform designed for enthusiasts, high-performance gaming PCs and demanding workstation builds. Powered by the AMD X870E chipset, it supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors. With DDR5 memory, five M.2 slots, PCIe 5.0 expansion, Wi-Fi 7, USB4 and dual high-speed LAN connections, this motherboard offers advanced connectivity and extensive upgrade options.

Key Features of the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard

Supports AMD Ryzen 9000, 8000 and 7000 Series

The AMD X870E chipset and AM5 socket support compatible Ryzen desktop processors across these series. This makes the motherboard suitable for high-end gaming, professional content creation, intensive multitasking and advanced desktop applications.

High-Speed DDR5 Memory

Four DDR5 memory slots support dual-channel memory and capacities up to 256GB. AMD EXPO and memory overclocking support allow compatible memory kits to use supported performance profiles. Actual speeds depend on the processor, memory modules and system configuration.

Five M.2 Slots for Flexible Storage

The motherboard includes five M.2 slots: two PCIe 5.0 x4 slots and three PCIe 4.0 x4 slots. This provides options for installing multiple NVMe SSDs for games, applications, large projects and high-speed storage workflows. Four SATA 6Gb/s ports support additional drives.

PCIe 5.0 Expansion for Enthusiast Builds

Multiple PCIe 5.0 expansion slots provide options for compatible graphics cards and expansion devices. The available lane configuration depends on the processor, and installing devices in certain slots can affect M.2 bandwidth. Consult MSI's manual when planning a multi-device setup.

Wi-Fi 7 and Dual High-Speed LAN

Built-in Wi-Fi 7 supports compatible wireless networks, while the dedicated 10G LAN and 5G LAN ports provide flexible wired networking. These connections are useful for compatible high-speed network infrastructure, large file transfers and demanding home or professional setups.

USB4 and High-Speed USB Connectivity

Two rear USB4 Type-C ports support transfer speeds up to 40Gbps and DisplayPort output with compatible devices. The motherboard also includes a front USB Type-C connector supporting up to 20Gbps, with up to 60W USB Power Delivery when connected to a suitable power source.

Premium Power Delivery and Thermal Design

The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard features an 18+2+1 Duet Rail Power System with 110A Smart Power Stages, dual 8-pin CPU power connectors and an OC Engine for advanced base-clock tuning. Its wavy-fin heatsink design, direct-touch cross heat pipe and double-sided M.2 Shield Frozr help manage heat during demanding workloads.

Enhanced Audio for Gaming and Content Creation

The Realtek ALC4082 audio codec works with an ESS9219Q DAC/headphone amplifier to provide high-quality audio output. This setup is suited to users who want enhanced onboard audio for gaming, media and compatible headphones.

Who Should Choose This Motherboard?

The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is suitable for users building:

  • A premium AMD Ryzen gaming PC

  • A high-performance content creation workstation

  • A system with multiple high-speed NVMe SSDs

  • A desktop requiring Wi-Fi 7, USB4 and 10G wired networking

  • An enthusiast PC for advanced tuning and overclocking

  • A high-end productivity system with extensive connectivity requirements

Compatibility Notes

  • This motherboard uses the AMD AM5 socket and DDR5 memory; it does not support AM4 processors or DDR4 RAM.

  • PCIe lane availability and speed vary by CPU series. Ryzen 8000 Series processors have different expansion capabilities from Ryzen 9000 and 7000 Series processors.

  • The PCI_E3 slot and M.2_1 slot share bandwidth. Installing a device in PCI_E3 can reduce M.2_1 to x2; switching PCI_E3 to x4 in BIOS disables M.2_1.

  • The M.2_2 slot shares bandwidth with the rear USB4 ports. Using an SSD in M.2_2 can reduce USB4 port speed; check the manual for configuration options.

  • HDMI and USB-C DisplayPort outputs require a processor with integrated graphics.

  • Wi-Fi 7 performance and 6GHz availability depend on compatible devices, operating-system support and regional regulations.

  • Check MSI's CPU support list, BIOS requirements and memory compatibility information before purchasing.

Buy MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard from UCP

Looking for the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard in Bangladesh? Explore motherboard options from United Computer Palace (UCP) at ucp.com.bd. Contact UCP to confirm the latest price, stock availability and warranty terms before placing your order.
