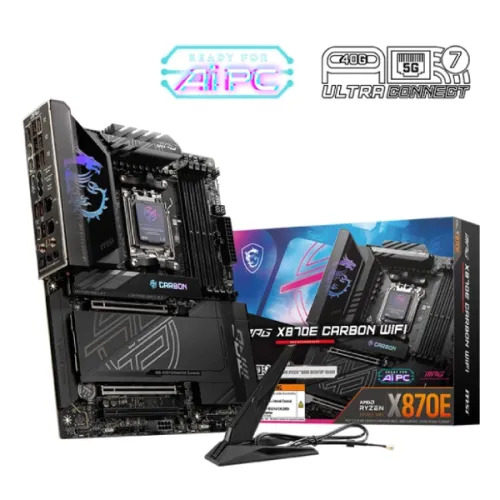

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard

The MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard is built for enthusiasts who want powerful performance, advanced connectivity and flexible upgrade options. Featuring the AMD X870E chipset and AM5 socket, it supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors. DDR5 memory, PCIe 5.0 expansion, four M.2 slots, Wi-Fi 7 and USB4 make it suitable for premium gaming PCs and demanding productivity systems.

Key Features of the MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard

AMD Ryzen 9000, 8000 and 7000 Series Support

The AMD X870E chipset and AM5 socket support compatible Ryzen desktop processors across these series. This gives builders flexibility to configure a powerful gaming system, a content creation workstation or a high-performance desktop for demanding applications.

High-Speed DDR5 Memory

Four DDR5 memory slots support dual-channel operation and capacities up to 256GB. AMD EXPO and memory overclocking support allow compatible memory kits to use supported performance profiles for demanding workloads and gaming.

PCIe 5.0 Graphics and Next-Generation Storage

The motherboard includes PCIe 5.0 expansion and four M.2 slots for fast NVMe storage. Two M.2 slots support PCIe 5.0 x4 with compatible processors, while the other two support PCIe 4.0 x4. The available bandwidth of some slots depends on CPU choice and lane sharing.

Wi-Fi 7 and Dual LAN Connectivity

Built-in Wi-Fi 7 provides modern wireless networking with compatible routers and devices. The combination of 5G LAN and 2.5G LAN also offers flexible wired networking options for gaming, large file transfers and supported high-speed networks.

USB4 for Fast Data Transfer

Two rear USB4 Type-C ports support transfer speeds of up to 40Gbps and DisplayPort output. Additional USB ports support a broad range of peripherals, external drives and compatible accessories.

Advanced Cooling and DIY Features

MSI includes an enlarged heatsink design with a heat pipe, M.2 Shield Frozr and EZ installation features to help manage thermals and simplify PC assembly. EZ Debug LEDs and an EZ Digit Debug LED can also assist with troubleshooting during system setup. <Cite refs={["turn357405search6","turn357405search24"]}/>

Who Should Choose This Motherboard?

The MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard is a strong option for users building:

• A premium AMD Ryzen gaming PC

• A high-performance workstation for content creation and multitasking

• A desktop with multiple high-speed NVMe SSDs

• A system requiring Wi-Fi 7, USB4 and high-speed wired networking

• An enthusiast PC with DDR5 memory and advanced expansion options

Compatibility Notes

• This motherboard uses the AMD AM5 socket and DDR5 memory; it does not support AM4 processors or DDR4 RAM.

• PCIe slot speeds and lane allocation vary by processor. Ryzen 8000 Series CPUs have different PCIe capabilities from Ryzen 9000 and 7000 Series CPUs.

• The second PCIe 5.0 M.2 slot is unavailable with Ryzen 8000 Series processors, according to MSI's specifications.

• The two primary PCIe 5.0 expansion slots share CPU lanes; check the motherboard manual for the supported configuration.

• HDMI and USB-C DisplayPort outputs require a processor with integrated graphics.

• Wi-Fi 7 performance and 6GHz availability depend on compatible devices, operating-system support and regional regulations.

• Check MSI's CPU support list and BIOS requirements before purchasing.

Buy MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard from UCP

Looking for the MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard in Bangladesh? Explore motherboard options from United Computer Palace (UCP) at ucp.com.bd. Contact UCP to confirm the latest price, stock availability and warranty terms before placing your order.
