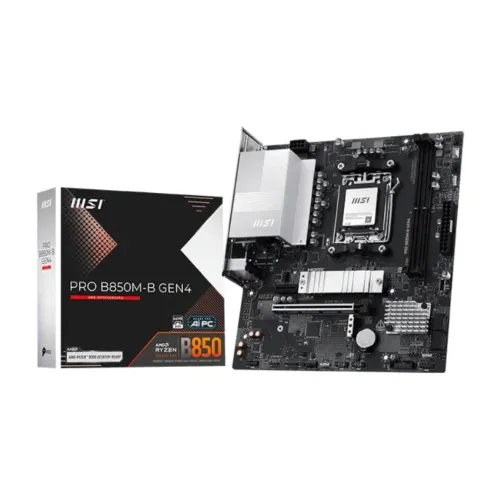

MSI PRO B850M-B GEN4 AM5 mATX Motherboard
MSI PRO B850M-B GEN4 AM5 mATX Motherboard
MSI PRO B850M-B GEN4 AM5 mATX Motherboard
MSI PRO B850M-B GEN4 AM5 mATX Motherboard
MSI PRO B850M-B GEN4 AM5 mATX Motherboard
MSI PRO B850M-B GEN4 AM5 mATX Motherboard
Share: Facebook chat WhatsApp
MSI check_circle In Stock Model: PRO B850M-B GEN4

MSI PRO B850M-B GEN4 AM5 mATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series, Socket AM5
  • Supported RAM: 2x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 128GB
  • Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
  • Features: 2x M.2, Realtek 8125 2.5G LAN, 7.1-Channel Audio
18,500৳
EMI starts at 606৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart MSI Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
AudioRealtek ALC897 7.1-Channel High Definition Audio
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
ChipsetAMD B850
Form FactormATX 226mmx243.84mm
BIOSFlash BIOS Button
Basic Information
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots
PCI1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
Memory
Slots2x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory128GB
Memory
Type (Memory)DDR5
Warranty Information
Manufacturing Warranty3 Years Warranty
Connector & Ports
HDMI1x HDMI 2.1
USB (s)2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s)Realtek 8125 2.5G LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Ports & Slots
Display port1x DisplayPort 1.4
Others
Special FeaturesLED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED
Description

MSI PRO B850M-B GEN4 AM5 mATX Motherboard

Build a modern AMD desktop with the MSI PRO B850M-B GEN4 AM5 mATX Motherboard. Featuring the AMD B850 chipset, support for compatible Ryzen 7000, 8000, and 9000 Series processors, DDR5 memory, and high-speed M.2 storage, this motherboard is suitable for productivity, everyday computing, and gaming PC builds.

Key Features of the MSI PRO B850M-B GEN4 AM5 mATX Motherboard

  • AMD Ryzen 7000, 8000 and 9000 Support: Build with a compatible AM5 processor. Check MSI's CPU support list and BIOS requirements for your specific CPU.

  • DDR5 Memory Support: Two DIMM slots support up to 128GB of DDR5 RAM, with AMD EXPO and memory overclocking support.

  • PCIe 5.0 M.2 Storage: The primary M.2 slot supports PCIe 5.0 x4 SSDs with compatible Ryzen 7000 and 9000 Series processors. Supported Ryzen 8000 processors may limit this slot to PCIe 4.0.

  • Dual M.2 and SATA Storage: Install compatible NVMe SSDs and SATA drives to accommodate operating systems, applications, games, and files.

  • PCIe 4.0 Graphics Expansion: The main PCIe x16 slot supports compatible graphics cards, with available bandwidth depending on the installed processor.

  • 2.5G LAN: Realtek 2.5Gb Ethernet provides high-speed wired networking when used with compatible network equipment.

  • Modern Connectivity: Rear USB Type-C and Type-A connections offer convenient connectivity for compatible peripherals.

  • EZ DIY Features: EZ Debug LEDs and convenient installation features help simplify troubleshooting and PC assembly.

Who Should Buy This Motherboard?

The MSI PRO B850M-B GEN4 AM5 mATX Motherboard is a practical choice for users building a modern AMD desktop for office work, multitasking, content creation, or gaming. Its DDR5 platform, dual M.2 slots, and 2.5G LAN provide a flexible foundation for a new PC build.

Compatibility Notes

  • This motherboard uses the AMD AM5 socket and requires compatible AM5 processors.

  • It supports DDR5 memory only; DDR4 RAM is not compatible.

  • Maximum memory speed and PCIe/M.2 bandwidth depend on the installed CPU, memory kit, and configuration.

  • HDMI and DisplayPort outputs require a processor with integrated graphics.

  • This model does not list built-in Wi-Fi or Bluetooth. Add compatible hardware if wireless connectivity is required.

Buy MSI PRO B850M-B GEN4 AM5 mATX Motherboard from UCP

Looking for the MSI PRO B850M-B GEN4 AM5 mATX Motherboard in Bangladesh? Contact UCP (United Computer Palace) to confirm the latest price, stock availability, and warranty details before placing your order.
