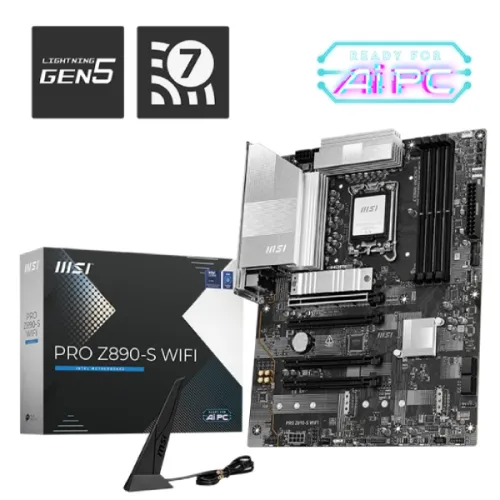

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
Share: Facebook chat WhatsApp
MSI check_circle In Stock Model: PRO Z790-S

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 0 views
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
  • Features: 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
33,000৳
EMI starts at 1,082৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart MSI Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports Intel Core Ultra Processors (Series 2) LGA 1851
ChipsetINTEL Z890
Form FactorATX 243.84mmx304.8mm
Basic Information
AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio
Basic Information
Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Expansion Slots
PCI4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Memory
Slots 4x UDIMM
Supported MemoryMemory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory256GB
Memory
Type (Memory)DDR5
Warranty Information
Manufacturing Warranty3 Year warranty
Connector & Ports
HDMI1x HDMI 2.1
USB (s)4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s)Realtek 8125D 2.5Gbps LAN
Wireless Communication moduleIntel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Ports & Slots
Display port1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Others
Special Features4x EZ Debug LED
Description

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

Build a next-generation Intel desktop with the MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard. Featuring the Intel Z890 chipset, support for Intel Core Ultra Series 2 desktop processors, DDR5 memory, and PCIe 5.0 expansion, this motherboard is designed for modern gaming, productivity, and professional computing systems.

Key Specifications

SpecificationDetails
BrandMSI
ModelPRO Z890-S WIFI
ChipsetIntel Z890
CPU SocketIntel LGA 1851
Processor SupportIntel Core Ultra desktop processors, Series 2
Memory TypeDDR5 UDIMM, dual-channel
Memory Slots4 × DIMM
Maximum MemoryUp to 256GB
Memory SpeedUp to 8800+ MT/s (OC), depending on configuration
M.2 Slots3 × M.2
Primary M.2PCIe 5.0 x4
Additional M.22 × PCIe 4.0 x4, with supported SATA mode on one slot
SATA Ports4 × SATA 6Gb/s
Primary Graphics SlotPCIe 5.0 x16
Additional ExpansionPCIe 3.0 x1 and 2 × PCIe 4.0 x4 slots
Wireless ConnectivityIntel Wi-Fi 7
BluetoothBluetooth 5.4
Wired NetworkingRealtek 2.5Gb LAN
Display OutputsHDMI 2.1, DisplayPort 1.4, Thunderbolt 4 Type-C with DisplayPort support
AudioRealtek ALC897, 7.1-channel HD audio
Form FactorATX (243.84 × 304.8 mm)

Key Features of the MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

  • Intel Core Ultra Series 2 Support: The LGA 1851 socket supports compatible Intel Core Ultra Series 2 desktop processors for modern computing workloads.

  • High-Speed DDR5 Memory: Four memory slots support up to 256GB of DDR5 RAM. Intel XMP 3.0 and memory overclocking support help compatible memory kits achieve higher speeds.

  • PCIe 5.0 Graphics Support: The primary PCIe 5.0 x16 slot provides high-bandwidth connectivity for compatible graphics cards.

  • Three M.2 SSD Slots: Install compatible NVMe storage using one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots.

  • Wi-Fi 7 and Bluetooth 5.4: Connect compatible wireless networks and peripherals. Wi-Fi 7 features and the 6GHz band require compatible equipment and may depend on local regulations.

  • 2.5G LAN Connectivity: The Realtek 2.5Gb Ethernet controller supports fast wired networking for gaming, file transfers, and professional workloads.

  • Thunderbolt 4 Connectivity: The rear Thunderbolt 4 Type-C port supports transfer speeds up to 40Gbps with compatible Thunderbolt devices.

  • Enhanced Cooling Design: Extended heatsinks, M.2 Shield Frozr, and thermal pads help manage heat during demanding workloads.

  • ATX Expansion: The full-size ATX layout provides multiple expansion slots and connectivity options for compatible desktop cases.

Who Should Buy This Motherboard?

The MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard is suitable for users building a modern Intel desktop for gaming, content creation, software development, professional applications, and demanding multitasking. Its DDR5 platform, high-speed storage, Wi-Fi 7, and Thunderbolt 4 connectivity make it a versatile foundation for a new PC build.

Compatibility Notes

  • This motherboard requires a compatible Intel Core Ultra Series 2 desktop processor with an LGA 1851 socket. It does not support LGA 1700 Intel processors.

  • It supports DDR5 memory only; DDR4 RAM is not compatible.

  • Actual memory speeds depend on the processor, memory kit, and configuration. Higher speeds may require Intel XMP and overclocking.

  • HDMI and DisplayPort output capabilities require a processor with supported integrated graphics.

  • Wi-Fi 7 performance depends on compatible networking equipment, operating-system support, and regional regulations.

  • Check your PC case dimensions and component compatibility before purchasing.
