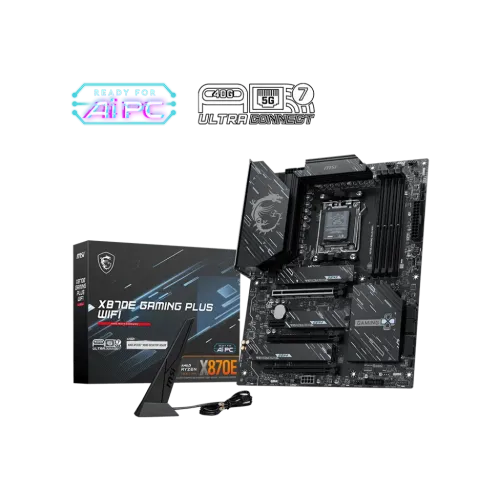

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Share: Facebook chat WhatsApp
MSI check_circle In Stock Model: X870E GAMING PLUS WIFI

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 1 views
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
  • Graphics Output: 1x HDMI, 1x Type-C DisplayPort
  • Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
35,900৳
EMI starts at 1,177৳/month. View all 29 banks EMI plans >
Payment Terms
verified_user
3 years
Fair E Mart MSI Bangladesh service center
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
AudioRealtek ALC897 7.1-Channel High Definition Audio
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
ChipsetAMD X870E
Form Factor ATX 243.84mmx304.8mm
Basic Information
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Expansion Slots
PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket3x M.2
Memory
Slots4x DIMMs
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory256GB
Memory
Type (Memory)DDR5
Warranty Information
Manufacturing Warranty3 Years
Connector & Ports
HDMI1x HDMI
USB (s) 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)Realtek 8126VB 5G LAN
Wireless Communication moduleWi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported StorageM.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Ports & Slots
Display port1x Type-C DisplayPort
Others
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Description

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

Build a high-performance AMD desktop with the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard. Featuring the AMD X870E chipset and AM5 socket, this motherboard supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors. With DDR5 memory, PCIe 5.0 support, Wi-Fi 7, 5G LAN and USB4 connectivity, it is designed for demanding gaming, multitasking and productivity systems.

Key Features of the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

Supports AMD Ryzen 9000, 8000 and 7000 Series

The AM5 socket and AMD X870E chipset support compatible Ryzen desktop processors across these series. This provides a strong foundation for gaming PCs, content creation systems and high-performance workstations. Check the processor support list and BIOS requirements before installation.

DDR5 Memory with AMD EXPO

Four DDR5 memory slots support dual-channel memory and capacities up to 256GB. AMD EXPO and memory overclocking support let compatible RAM kits use supported performance profiles, depending on the processor and system configuration.

PCIe 5.0 Graphics and High-Speed M.2 Storage

The primary graphics slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and 7000 Series processors. Three M.2 slots provide fast NVMe storage options, including one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots. Four SATA ports allow additional storage drives to be installed.

Wi-Fi 7 and 5G LAN Connectivity

Built-in Wi-Fi 7 supports compatible wireless networks, while the 5G LAN port provides high-speed wired networking with compatible network equipment. Bluetooth 5.4 supports compatible wireless peripherals, headsets and accessories.

USB4 and Flexible Connectivity

The rear USB4 40Gbps Type-C port supports high-speed data transfer and DisplayPort output. Additional USB Type-A and Type-C ports provide connections for external storage, peripherals and compatible accessories.

Cooling and PC-Building Features

MSI includes extended heatsinks, M.2 Shield Frozr II and EZ installation features to support thermal management and simplify assembly. Fan headers, RGB lighting connectors and EZ Debug LEDs also help users configure and troubleshoot their PC builds.

Who Should Choose This Motherboard?

The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is suitable for users building:

  • A high-performance AMD Ryzen gaming PC

  • A desktop for video editing, content creation and demanding applications

  • A system with DDR5 memory and high-speed NVMe SSDs

  • A modern PC with Wi-Fi 7 and 5G wired networking

  • An AM5 desktop with advanced connectivity and future upgrade options

Compatibility Notes

  • This motherboard uses the AMD AM5 socket and DDR5 memory. It does not support AM4 processors or DDR4 RAM.

  • PCIe graphics-slot speed depends on the installed processor. Ryzen 8000 Series processors can have different PCIe lane and speed capabilities.

  • The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors; Ryzen 8000 Series support may differ.

  • HDMI and USB-C DisplayPort outputs require a processor with integrated graphics.

  • Wi-Fi 7 performance and 6GHz band availability depend on compatible equipment, operating-system support and regional regulations.

  • Confirm processor compatibility, BIOS requirements, memory support and PC case clearance before purchasing.
